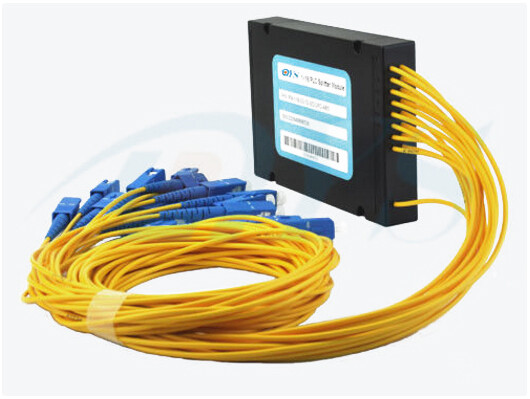

Yellow Optical Fiber 1*16 PLC Splitter With SC / UPC Connector For Data Communication
Quick Details:
1.Place of Origin: Guangdong, China (Mainland)
2.Brand Name: DYS/OEM
3.Model Number: 1*16 PLC Splitter
4.Connector: SC/UPC
5.Output Connector Type: LC ,ST,SC,FC
6.Length: 1m ,1.5m, 2m or customized length
Specifications
1.High uniformity &Easy Installation
2.various coupling ratio
3.Wavelength:1310/1490/1550
Description of PLC Splitter:
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Fibre Optic Splitter Application:
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
Fibre Optic Splitter Types:
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
Fibre Optic Splitter Feature:
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
Specification:
| Parameter | Unit | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 |
| | Premium Grade |
| Insertion Loss at 23°C | Typ. | dB | 3.9 | 6.8 | 9.3 | 10.0 | 12.1 | 13.2 | 16.5 | 20.0 |
| Max | dB | 4.0 | 7.0 | 9.6 | 10.4 | 12.6 | 13.5 | 16.8 | 20.5 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.0 | 1.6 | 1.6 | 1.6 | 2.0 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| | Standard Grade |
| Insertion Loss at 23°C | Typ. | dB | 4.0 | 7.0 | 9.5 | 10.4 | 12.4 | 13.6 | 17.0 | 20.5 |
| Max | dB | 4.2 | 7.3 | 10.0 | 10.6 | 12.8 | 13.8 | 17.1 | 20.8 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.0 | 1.0 | 1.4 | 1.6 | 2.0 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.3 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | Min | dB | 55 (Premium Grade)/50 (Standard Grade) |
| Directivity | Min | dB | 55 |
| Operation Wavelength | nm | 1260~1650 |
| Operation Temperature | °C | -4-~+85 |
| Storage Temperature | °C | -4-~+85 |
| Fiber Type | - | G.657A or Customized |
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
Why choose us :
1.Competitive price
2. Fast delivery
3.Free sample provided
4.Longtime warranty
5.Reliable quality, OEM service available
6. Professional product and technical support
7.Prompt answer for any question or inquiry
8.Value-added service: except good products, we can provide good services on logistic and other help you may need
Fibre Optic Splitter is one of our most competitive products. Any request, please kindly contact with me,I will do my best to satisfy your requirement. Hope I will take an opportunity to serve your esteemed company
If you have any questions or request,please let me know
I am at your service all the time!
